5/2 Way Pneumatic Solenoid Valve 4V210-08 AC220V Single Head Pilot Operated Valve

The "5/2" notation defines the valve's port and position count. 5 refers to the number of ports: one pressure supply port (P/1), two actuator working ports (A/2 and B/4), and two exhaust ports (R/3 and S/5). 2 refers to the two discrete switching positions the spool can occupy. When the solenoid is energized, the spool shifts to direct supply pressure to one working port while exhausting the other. When de-energized, the spring returns the spool to its original position, reversing the flow path.

In a pilot-operated valve, the solenoid does not move the main spool directly. Instead, the solenoid operates a small pilot valve that routes supply pressure to shift the main spool. This mechanism requires a minimum supply pressure — typically 0.15 MPa (1.5 bar) — to generate sufficient pilot force for reliable spool actuation. If line pressure drops below this threshold, the valve may fail to switch or switch erratically. For applications with supply pressure below 0.15 MPa, a directly actuated solenoid valve should be selected instead.

The 4V210-08 is designed to control double-acting actuators that require air on both sides of the piston. For single-acting (spring-return) cylinders, a 3/2-way solenoid valve is the correct selection, as it provides one pressurized working port and one exhaust path using only three port connections. Using a 5/2 valve with a single-acting cylinder is technically possible by leaving one working port plugged or vented, but it introduces unnecessary flow restrictions and is not recommended practice. Selecting a valve matched to the actuator type ensures predictable performance and simplifies circuit design.

The standard 4V200-series solenoid enclosure is rated IP65, which provides protection against dust ingress and low-pressure water jets from any direction. This rating is adequate for indoor industrial environments with wash-down requirements and most covered outdoor installations. It is not suitable for submersion or continuous rain exposure without additional housing. The coil insulation class is typically Class F (155°C), supporting continuous operation in ambient temperatures up to approximately 50°C. For corrosive or chemically aggressive atmospheres, specifying a stainless steel body variant or an external valve enclosure is advisable.

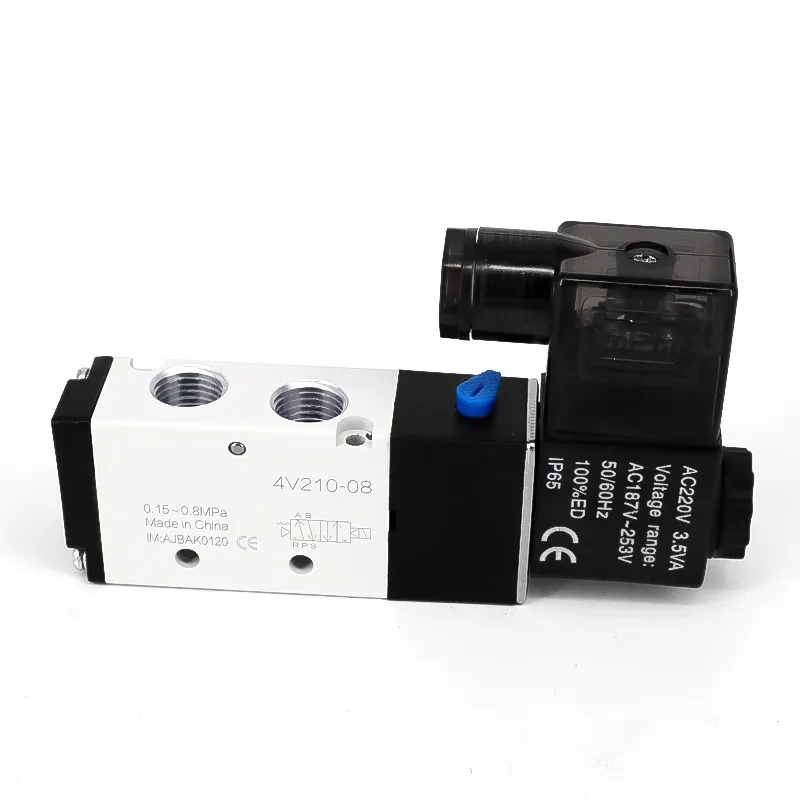

Within the 4V200 series, the model number suffix indicates the solenoid configuration. The 4V210-08 uses a single solenoid with spring return — when the coil is de-energized, the spool reverts to its rest state automatically. The 4V220-08 uses double solenoids with no spring, maintaining its last switched position after the coil signal is removed (memory position). The physical body, port sizing, mounting footprint, and pressure ratings are identical between both models. The choice between them depends on whether the application requires a defined default state (use 210) or position memory across control signals (use 220).

Under clean, lubricated air supply conditions within the rated pressure range, the 4V210-08 is rated for a minimum of 30 to 50 million switching cycles before seal wear typically becomes a factor. Actual service life varies with switching frequency, air quality, and operating temperature. The valve body is designed for field maintenance: the coil assembly, seal kit (comprising the main spool O-rings and pilot seals), and manual override button are all separately available as service parts. Seal replacement requires no specialized tooling beyond standard hex keys and does not necessitate removing the valve sub-base from the manifold or piping.
